PC Intelligent Grounding Automatic Screw Fastening Equipment | High Precision SMT Screw Driver Machine
Product Overview
The PC Intelligent Grounding Automatic Screw Fastening Equipment is an advanced automated solution designed to enhance SMT production lines by streamlining the screw fastening and grounding process. This machine integrates precision screw-driving technology, PLC control systems, and a touch screen interface to deliver a seamless, high-efficiency fastening solution for a wide range of industrial applications.
Widely used in electronics assembly, OEM production, automotive electronics, and consumer electronics, this machine helps manufacturers increase production accuracy, reduce labor costs, and maintain high-quality standards.
System Description

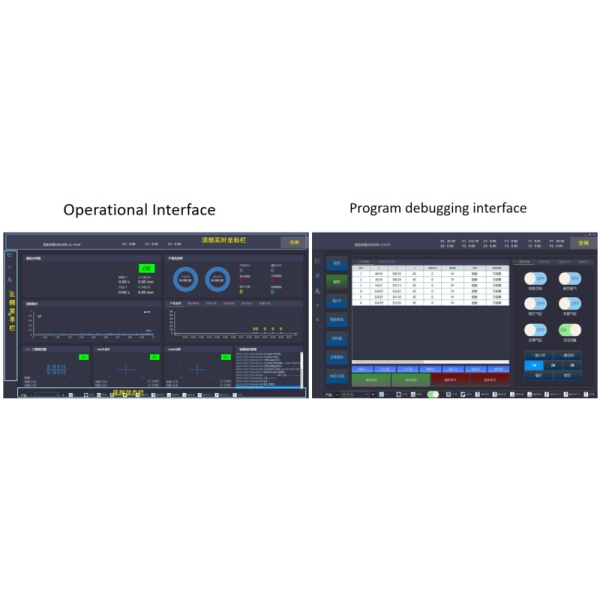

Intelligent Screw Operation – A PC-based screw machine system developed based on the WIN10 system,
adding the following functions to the original screw machine's basic functions:
- Point-to-point teaching: CAD coordinate import, manual teaching;
- Optional: Supports barcode scanning: Reads product barcodes and QR codes; (Barcode scanner required)
- Optional: Supports MES connection: Uploads production data to the server via network connection;
- Features production statistics and traceability functions: Automatically saves data for each screw fastening operation and allows for querying and exporting XLS files;
- Operation permissions: Multi-user, multi-level permission management; Intelligent electric screwdriver parameter reading and screw fastening detection functions: Electric screwdriver waveform reading, float detection, local CVS data saving, data saving, intelligent detection functions (detection of missing screws, float, and stripped threads);
Model Parameter Table
| Axis traveling distance |
300*250*200 |
| Locking product size |
240*250 |
| Driven method |
Servo Motor |
| Positioning accuracy |
±0.03mm |
| Screw feeding method |
Suction type(or air blowing type) |
| Locked time |
1.5-3S |
| Power supply voltage |
AC220V |
| Power |
1200W |
| Compressed Air Supply |
0.4-0.6MPA |
| Total weight |
200KG |
| Electric screwdriver quantity |
1 |
Applications
The PC Intelligent Grounding Automatic Screw Fastening Equipment is ideally suited for a variety of industries, including:
-
SMT production lines: Increases efficiency and precision for electronic component assembly
-
OEM/ODM manufacturers: Ideal for mass production of electronic products
-
Automotive electronics: Ensures reliable screw fastening for automotive parts
-
Consumer electronics: Helps streamline the assembly of devices such as smartphones, tablets, and wearables
Why Choose Our Equipment?
-
Precision and Reliability – Ensure accurate screw fastening and consistent performance for high-quality products.
-
Automated Efficiency – Improve production speed while reducing human error and operational costs.
-
Smart Grounding System – Safeguard sensitive electronic components with reliable grounding technology.
-
Cost-effective – Save on labor and reduce manual intervention with a fully automated system.
-
Easy Integration – Designed for seamless integration into existing SMT production lines.
